W25Q64FV
6.2.32
Read Manufacturer / Device ID Quad I/O (94h)
The Read Manufacturer / Device ID Quad I/O instruction is an alternative to the Read Manufacturer /
Device ID instruction that provides both the JEDEC assigned manufacturer ID and the specific device ID
at 4x speed.
The Read Manufacturer / Device ID Quad I/O instruction is similar to the Fast Read Quad I/O instruction.
The instruction is initiated by driving the /CS pin low and shifting the instruction code “9 4 h” followed by a
four clock dummy cycles and then a 24-bit address (A23-A0) of 000000h, but with the capability to input
the Address bits four bits per clock. After which, the Manufacturer ID for Winbond (EFh) and the Device
ID are shifted out four bits per clock on the falling edge of CLK with most significant bit (MSB) first as
shown in Figure 31. The Device ID values for the W25Q64FV is listed in Manufacturer and Device
Identification table. The Manufacturer and Device IDs can be read continuously, alternating from one to
the other. The instruction is completed by driving /CS high.
/CS
Mode 3
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
CLK
Mode 0
Instruction (94h)
A23-16
A15-8
A7-0
(00h)
M7-0
Dummy
Dummy
IOs switch from
Input to Output
IO 0
4
0
4
0
4
0
4
0
4
0
4
0
IO 1
IO 2
IO 3
High Impedance
High Impedance
High Impedance
5
6
7
1
2
3
5
6
7
1
2
3
5
6
7
1
2
3
5
6
7
1
2
3
5
6
7
1
2
3
5
6
7
1
2
3
/CS
MFR ID
Device ID
23
24
25
26
27
28
29
30
Mode 3
CLK
Mode 0
IO 0
IO 1
IO 2
IO 3
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7
0
1
2
3
MFR ID
(repeat)
Device ID
(repeat)
MFR ID
(repeat)
Device ID
(repeat)

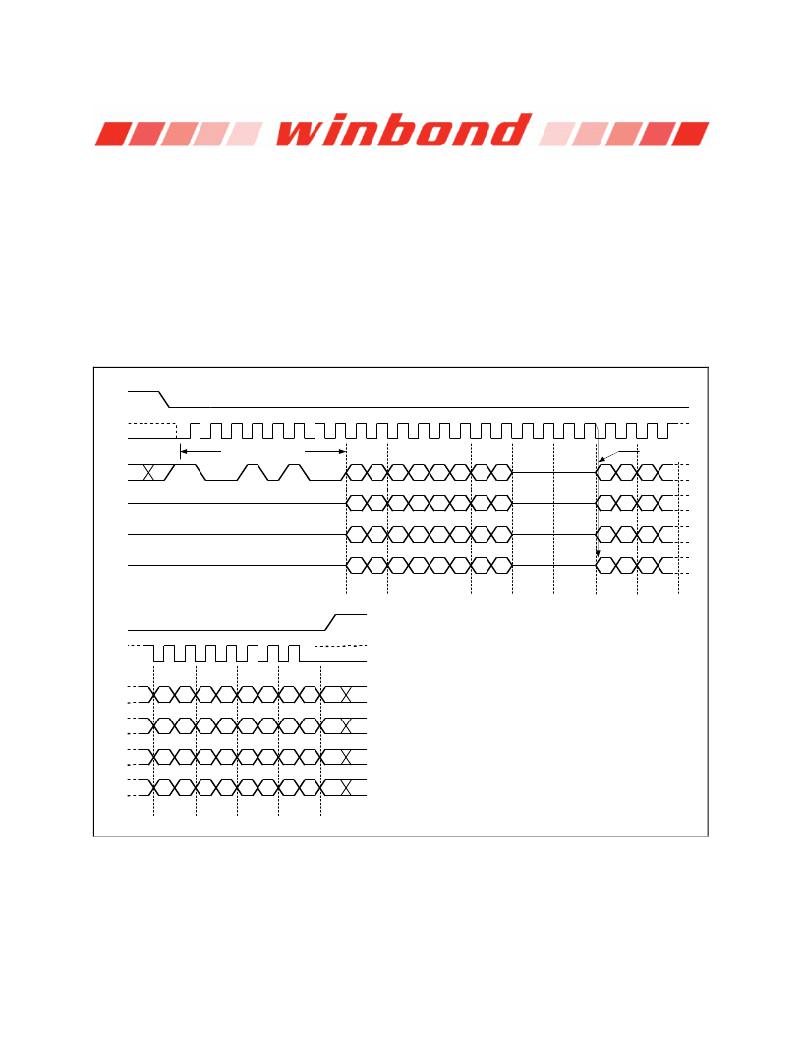

Figure 31. Read Manufacturer / Device ID Quad I/O Instruction (SPI Mode only)
Note:
The “Continuous Read Mode” bits M(7 -0) must be set to Fxh to be compatible with Fast Read Quad I/O instruction.
- 59 -
Publication Release Date:
October 07, 2013
Revision L
